Convert CAD/PDF files to Smart Drawings with 100% accuracy, 70% faster at 50% lower cost

Book a Demo

Lossless Conversion

Our tool generates Smart Drawings with precise accuracy, ensuring no critical information is lost in the conversion process

Captures complex relationships between components

Captures all the attributes and associates them with the right components

Extracts drawing metadata

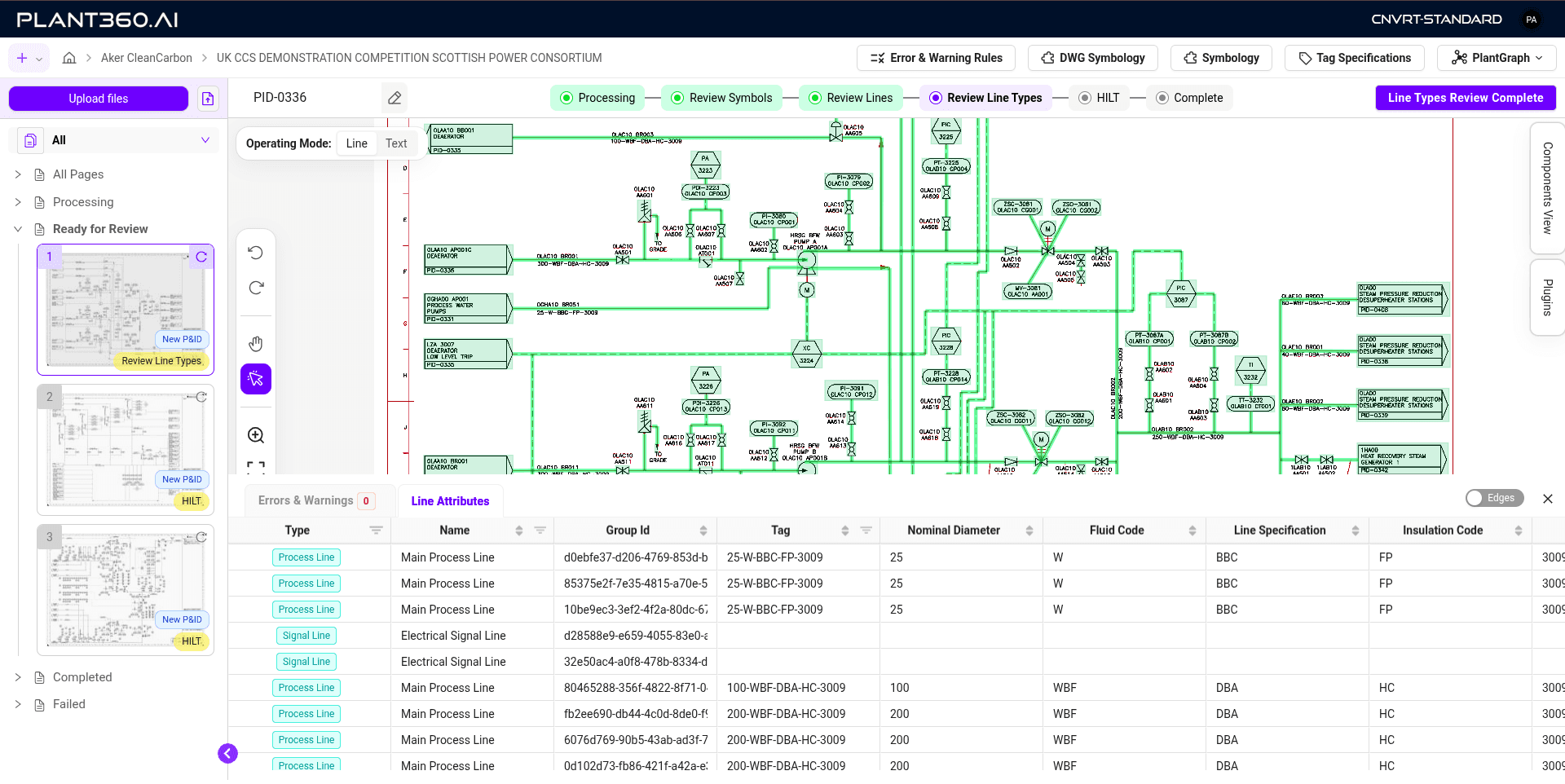

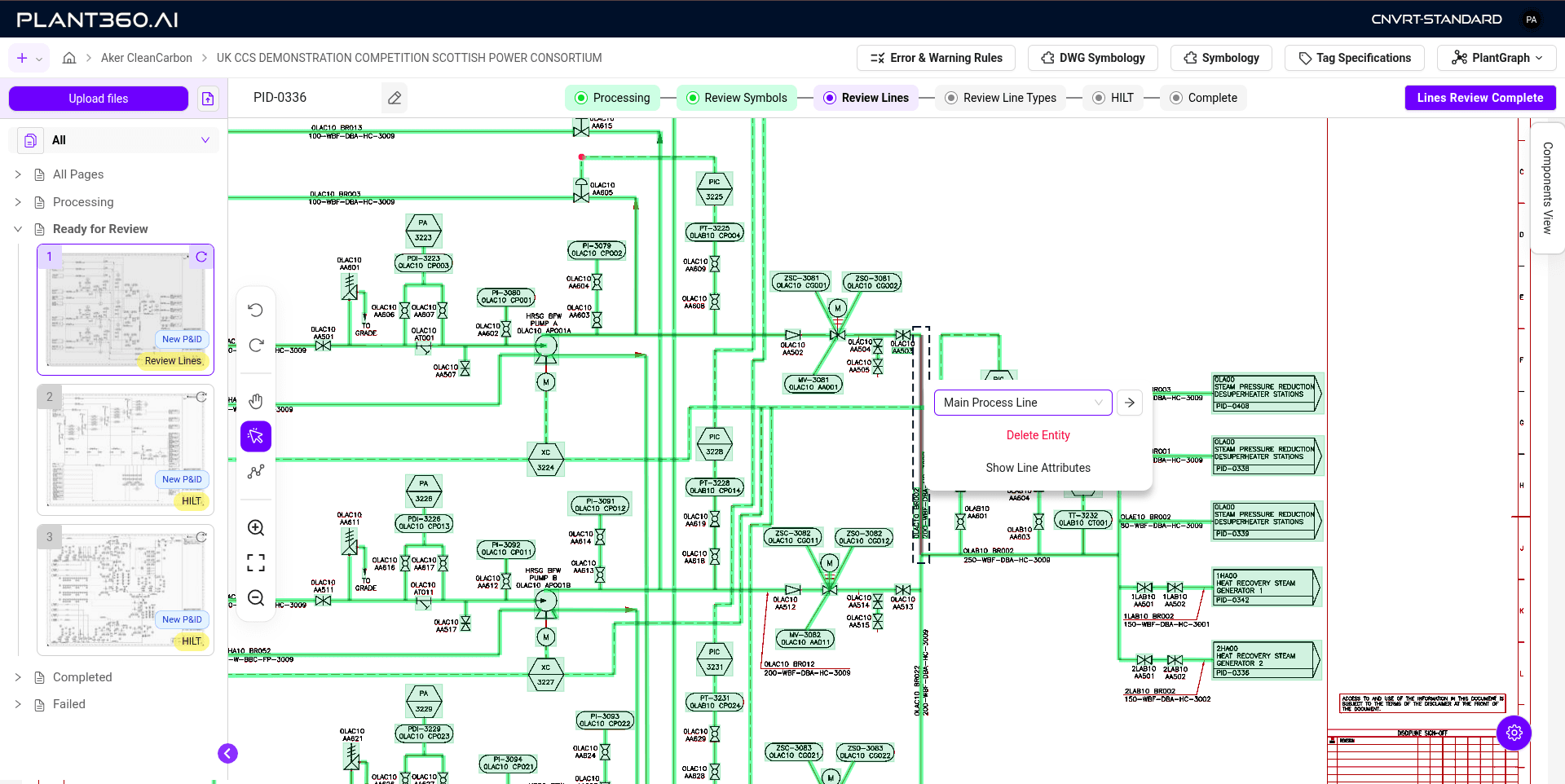

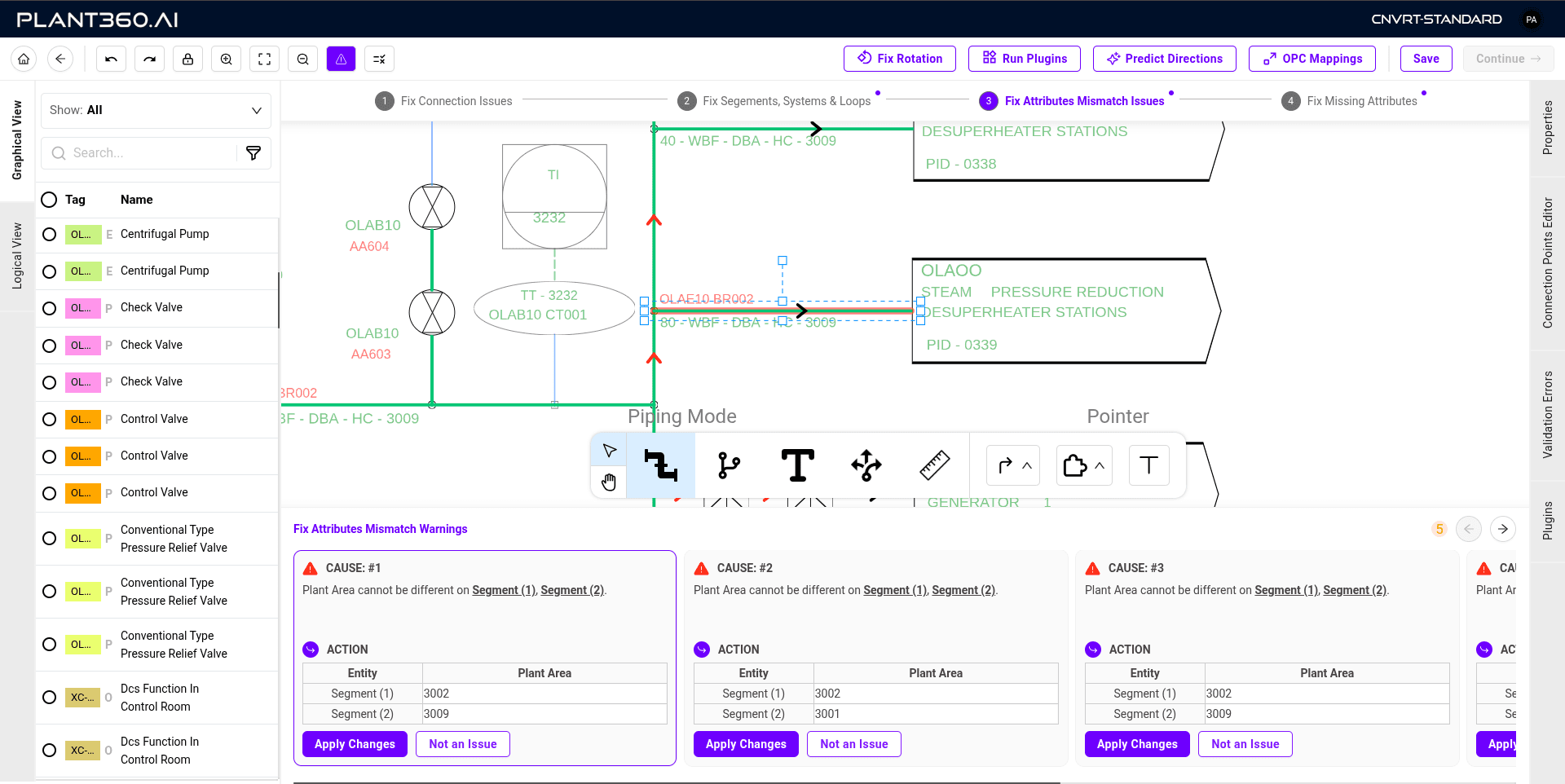

Guided Human Review

Our tool is designed for drafters and process engineers to perform a rigorous, yet efficient review to ensure lossless conversion

Visual, guided review process to make the reviews efficient

Use in-built guardrails to ensure thorough review of the drawings

System learns from the human reviews enabling continuous improvement of the AI models

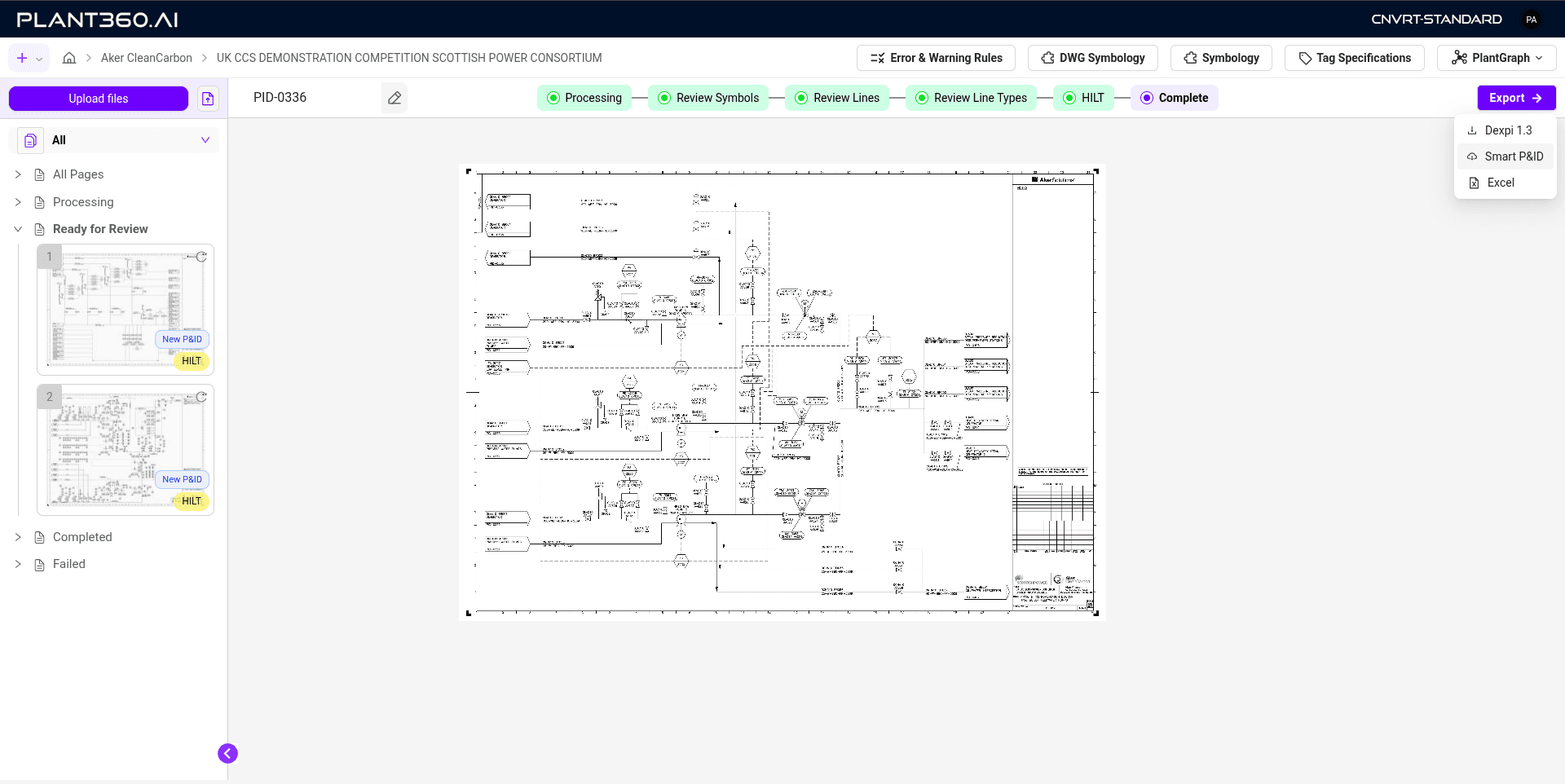

Import PDF / Autocad; Export to SP PID / Aveva / DEXPI

Our system works with PDFs or Images, not just a semi-structured format like Autocad. We export to all the widely adopted tools like SP PID, Aveva, and interop standards like DEXPI / ISO 15926

Computer vision / multi-modal AI models to work with images and Autocad files

Export to multiple industry leading smart drawing platforms like SP PID and Aveva

Connector architecture to quickly integrate new platforms for the drawing exports

API Access

Our system allows automation of workflows through API access which enables the batch upload of drawings

Kick-start the conversion process through single or batch upload of drawings

Monitor the conversion process and control the export of the drawings

Query the converted data in multiple formats -- as a graph or as a relational database

Enterprise Ready

Automate analysis such as Turaround isolation plan, isolation point mapping, corrosion circuit list etc. to accelerate operations, maintenance, and safety activities

Secure SAML based authenticaion and fine-grained authorization

SSO over SAML and ACL / provisioning control using SCIM

Robust data privacy and security controls

Ready to Transform your Workflows from Document Oriented to Data Oriented?
